How to Make and Check an SVG for Cricut

1. Assess the source before choosing a method

Keep the original PNG, JPEG or WebP for comparison. Prefer the least-compressed original over a screenshot or repeatedly saved JPG. Compression blocks, halos around letters and tiny specks can become unwanted traced boundaries. Inspect thin letterforms and enclosed spaces before deciding whether a trace is worth editing. Flat, clearly separated regions are easier to judge than photographic shading; this is a selection aid, not a conversion guarantee.

Cricut documents both raster-image and vector-upload workflows. External SVG conversion is a choice when editable paths help; it is not required for every cut project. Follow the instructions for your desktop or mobile platform. Source: https://help.cricut.com/hc/en-us/articles/360009556313-How-to-upload-images-into-Design-Space

2. Prepare the background without erasing the design

Crop excess raster canvas and remove only background pixels you do not want. If adjusting contrast in an editor, compare thin strokes before and after: stronger contrast can also erase faint detail. Semi-transparent edge pixels and shadows deserve a close look. A transparent PNG does not prove that the resulting SVG has no background shape; inspect the actual geometry. Raster enlargement does not restore lost detail.

3. Create the SVG or keep the one you have

Vectorize accepts PNG, JPEG and WebP for protected preview and provides SVG after successful download authorization. PDF, AI and EPS are not direct preview inputs or direct output formats. Preserve their vector content in a separate editor instead of rasterizing it just to upload here. There is no user-facing trace colour-count control or per-colour file export in this workflow.

For a local raster-tracing alternative, Inkscape documents Trace Bitmap. The guide is labelled version 1.3; compare the traced object with the retained source and use the controls actually present in your installed version. Drawing an original vector design is a separate method from tracing. Source: https://inkscape-manuals.readthedocs.io/en/latest/tracing-an-image.html

4. Clean paths while protecting the intended shape

Check background objects, duplicate contours, stray fragments, narrow islands and holes at the final size. Closed silhouettes need deliberate closure; a score or draw line may intentionally remain open. Combine or simplify only where the intended design remains intact. A node total is not a quality target: compare the curve and test the result after each edit.

Cricut lists editable text, clipping paths, pattern fills, linked images and embedded non-vector imagery as unsupported SVG/DXF upload items. Convert text to shapes on a copy and resolve clipping as intended geometry, or keep raster artwork in the separate Print Then Cut workflow. SVG Cleanup optimizes code; it does not certify geometry or Design Space import. Source: https://help.cricut.com/hc/en-us/articles/360009553213-Image-uploads-unsupported-items

5. Upload, place and check the Design Space project

1. Use the image-upload workflow in your installed Design Space application and select the SVG copy. Review the vector import, add it to your uploaded image library and place it on the canvas using that platform’s controls. Do not apply a raster-only upload choice to an SVG.
2. Check expected objects and holes on the canvas. Uploaded vector layers may arrive grouped; inspect or ungroup them when necessary. If objects disappear or a background becomes a cut, cancel the cut preparation and repair the SVG before uploading a new copy.
3. Lock the aspect ratio and set the intended physical width or height. Verify the other dimension. Choose the intended Cut, Draw or Score operation for each relevant layer; fill colour is not a blade or pen instruction.
4. Use Attach only for elements whose relative positions must remain together on the same material. Review each mat or material layout, then choose the compatible machine, tool and material configuration separately.

These stages follow Cricut’s documented upload workflow, rather than a claimed walkthrough of a particular installed build. Imported vector paths begin as cut lines; draw/score work needs explicit operation assignment and placement checks. Source: https://help.cricut.com/hc/en-us/articles/360009556313-How-to-upload-images-into-Design-Space

Group organizes the canvas; Attach preserves placement and associates draw/score with cut layers. Use the linked operation guides when you need to preserve placement or merge overlapping shapes. Source: https://help.cricut.com/hc/en-us/articles/26751604105879-Canvas-screen-Design-Space-Guide

Model names alone do not determine usable design area. For Explore Air 2, Maker 3 or a Joy-family project, check the selected machine, mat or supported matless material and operation in the current application. Distinguish one continuous design from repeated copies. Original Joy and Joy Xtra should not be treated as interchangeable Print Then Cut configurations.

6. Test the smallest meaningful part at its final size

Illustrative monogram: suppose a 60 mm-wide badge contains an A, a detached dot and a small decorative leaf. Check that the A counter remains open, that the dot is intentional and that the leaf is still manageable at 60 mm. Cutting an enlarged badge cannot prove that the small leaf survives at the intended size. This is a planning example, not an observed Vectorize output.

Run a small scrap test with the intended material and compatible settings. Record machine, tool, material, scale and what happened while cutting and removing the excess material. If thin features lift or gaps close, inspect those areas, revise only what is needed and import the revised SVG. For paper cards, inspect bridges and score placement; for HTV, verify mirror and carrier orientation against the exact material instructions. A successful import alone does not establish either result.

Slice: Check the actual selection first

Slice splits overlapping layers so you can keep a cutout, a cropped portion or separate material pieces. Select exactly two layers and decide which resulting geometry belongs in the final design.

Cricut’s Canvas guide specifies exactly two selected layers for Slice. Two visible groups may contain more than two layers, so inspect the Layers selection rather than counting visible designs. Source: https://help.cricut.com/hc/en-us/articles/26751604105879-Canvas-screen-Design-Space-Guide

If Slice is unavailable, make a copy and isolate the two intended layers. Check whether grouping, attachments or a multilayer text/design selection hides additional objects. Avoid flattening everything as a workaround: a printable composite is a different job from an editable geometric cutout.

Slice: Make a circular opening in a tag

1. Keep a duplicate tag. Place a circle where you intend the opening, leaving enough surrounding material for a test at the final size.
2. Select the tag layer and circle layer, then use Slice in your installed Design Space controls.
3. Move the results apart temporarily so you can identify the tag remainder, cutter-shape remnants and any overlapping copies. Do not assume a fixed number of pieces.
4. Retain the tag with the intended opening and delete only identified unwanted results. Return the retained shape to its intended size and inspect the cut preview.

This is an illustrative two-shape exercise. A holed shape or a layer containing several disconnected components can create more complicated results. Count and inspect your actual pieces rather than treating a three-shape diagram as a universal outcome.

Slice: Crop, split or subtract: choose what to retain

For several layers, work through intentional two-layer operations on copies. Inspect the first result before making it an input to the next. If a small bridge vanishes, changing the artwork may be necessary; a different selection alone cannot make a disconnected piece stay attached.

Slice: Text and troublesome results

For imported SVG lettering, inspect whether it is actual geometry or editable text before blaming Slice. If shapes vanish or holes fill unexpectedly, compare the original in an editor and use the file-fault checks above. A source that appears correct on the canvas still needs a mat check and a small cut; no tested result count is claimed here.

Weld: Decide whether the overlap should disappear

Weld removes internal overlapping cut lines where shapes should become one silhouette. Overlapping script letters are a useful case; separate colours and intentional holes need a different decision.

Cricut describes Weld as permanently removing overlapping cut lines and Unite as preserving editability. Attach keeps positions without performing that merge; Flatten makes a printable composite. Choose by the intended result rather than by the number of selected objects. Source: https://help.cricut.com/hc/en-us/articles/26751604105879-Canvas-screen-Design-Space-Guide

Keep a duplicate of the editable arrangement before welding. Treat Weld as a geometry change and do not depend on a later Undo history to recover the source after closing or reopening a project. If you need to reposition the pieces later, consider the documented editable Unite operation in your installed version.

Weld: Join only the shapes that belong together

1. Place the intended same-material shapes so they overlap where they should join. A visible gap will not become a bridge just because you merge the selection.
2. Select only those shapes and use Weld in your installed Design Space controls. Compare the merged outline with the original duplicate.
3. Check each letter counter, narrow neck and internal opening. If an opening fills or a needed edge disappears, return to the preserved original and correct the geometry or selection.
4. Inspect the mat preview for the intended silhouette and run a small material test at the final size.

Do not weld an entire multicolour project merely because lines overlap on the canvas. Those overlaps may be the intended stacking of different materials.

Weld: Script lettering with a counter: a useful counterexample

Illustrative wordmark: two script letters overlap at their joining stroke, while an e contains a small enclosed counter. The shared stroke should become continuous; the e opening should remain. If the second letter covers the counter, a union can fill it. Move or redesign that overlap on the original copy before applying the merge again.

Disconnected dots can remain separate islands even when the result is managed as one layer. A single layer is not proof of one physically connected piece. Likewise, the two borders of an outlined stroke are not necessarily duplicate paths: decide whether the intended mark is a filled band or one drawn line before editing.

Weld: If repeated cuts remain

Compare the cut preview with the preserved shapes. Coincident duplicate contours, adjacent stroke borders and repeated passes from the material setup have different causes. Use the file-fault checks above to isolate the cause instead of applying Weld repeatedly. SVG Cleanup is code optimization and does not provide a general duplicate-cut diagnosis.

Fault diagnosis: Separate an import fault from a physical cut fault

Start with the symptom and keep the original SVG. A rejected import, an unexpected rectangle and a torn physical cut are different problems; changing every path at once makes the cause harder to find.

Save the exact error text, Design Space version and platform, and the file copy that triggered it. Try a simple SVG you already know imports in that same setup. If both fail, investigate the application or session before editing the artwork. If only one file fails, compare its objects and features in an editor. This comparison narrows the cause; it does not prove every failure is structural.

Cricut lists pattern fills, clipping paths, editable text, linked images and embedded non-vector imagery as unsupported SVG/DXF upload items. Check for those features rather than blaming all Inkscape namespaces or all SVG files from one editor. Convert text to shapes on a copy; resolve clipped artwork deliberately. Source: https://help.cricut.com/hc/en-us/articles/360009553213-Image-uploads-unsupported-items

Fault diagnosis: Locate the visible fault before changing geometry

Fault diagnosis: Double cuts: duplicate contours or an outlined band?

Illustrative diagnostic: a logo has one apparent circle, but the cut preview shows two coincident outlines. On an editor copy, move one selected contour temporarily. If an identical contour stays underneath, investigate a duplicate and remove only the redundant object. If moving it reveals the other edge of a narrow ring, the two contours may be the intentional inner and outer boundaries of a band.

Two overlapping cut contours can cause repeated blade travel, but not every repeated cut is a duplicate SVG. Compare the actual operation and pass configuration too. Weld can remove intended same-material overlaps; it is not a universal repair for outlined strokes, layered colours or repeated material passes.

Fault diagnosis: Repair a background, a gap or a missing hole

1. For an unwanted SVG background, identify the object by selection or temporary hiding, not by colour alone. Delete only the verified unwanted object. Changing a fill to transparent can leave geometry that still cuts.
2. For a gap in an intended closed silhouette, inspect the endpoints in the editor’s node tools and join only the intended pair. Do not close deliberate draw or score lines.
3. For a missing counter, compare the compound path and overlapping shapes with the original. Breaking a shape apart and unioning everything can fill holes; reversing path direction is not a general fix.
4. Keep the editing master, export a separate SVG copy and reopen it. Verify dimensions, expected layers, holes and the repaired feature before a new Design Space import.

Use the documented vector upload workflow to check the repaired copy on the canvas and in preparation preview. Imported vector layers may be grouped; inspect them rather than assuming every source colour maps to the intended material layer. Source: https://help.cricut.com/hc/en-us/articles/360009556313-How-to-upload-images-into-Design-Space

Fault diagnosis: What SVG Cleanup can and cannot establish

SVG Cleanup checks its accepted SVG safety contract and applies configured code optimization. It may change path commands or coordinate precision; it does not offer a general open-path report, duplicate-contour diagnosis, automatic closure or a guarantee of smoother physical cuts. Keep the original and compare the optimized output if you choose that action.

If the geometry and cut preview look correct but the material tears, shifts or fails to separate, use the physical-cutting section below. Repeatedly optimizing the same file cannot isolate a blade, mat or material problem.

Attach and inspect placement

Choose placement rather than a shape merge.

Cricut documents Attach for preserving placement and associating draw or score work with cut layers. Group organizes the canvas but does not preserve the mat arrangement. Weld changes overlapping geometry; Flatten creates a printable layer. Source: https://help.cricut.com/hc/en-us/articles/26751604105879-Canvas-screen-Design-Space-Guide

Text over a shape does not always need Attach. First decide whether the text is a cutout, a pen operation, printed artwork or a separate vinyl colour. Attaching different intended material colours together is not a substitute for planning separate cuts. Nor does Attach establish print registration on a preprinted sheet.

Attach the intended selection and inspect the mat.

1. Arrange the relevant layers on the canvas at the intended physical size. Assign each intended cut, draw or score operation before judging placement.
2. Select only the layers that must share relative positions on the same material. Use Attach in the controls available in your installed Design Space version.
3. Open the mat preparation preview. Compare the spacing between those elements with the canvas; check the operation assigned to each line.
4. If the wrong layers were included, return to the canvas, select the attached set and use Detach where offered. Adjust the selection and review the preview again.

Menu placement differs by platform and build. This is a documented operation sequence, not a recorded screenshot walkthrough.

Star inside a circle: what should remain?

Illustrative example: centre a star within a circle and intend to cut both outlines from one piece of cardstock. Attach should preserve the star’s position relative to the circle on the mat. The star outline remains a separate cut, leaving a star-shaped opening; Attach does not turn the two shapes into one solid disk.

If instead the star should be a second colour of vinyl placed on top later, keep the separate material plan. If the star should be drawn inside a cut circle, assign it as a draw operation and check that it is attached to the circle. Relative placement is the reason to use Attach in that case.

Recover placement without losing editable layers.

After detaching, inspect each object and its operation again. Keep a duplicate project before rearranging a complex design, and compare the canvas and mat on each change. If you actually need to remove internal overlapping cut lines, use the Weld section above; if you need a printed composite, follow Flatten. SVG Cleanup does neither operation.

Paper cutting: bridges, scores and fragile features

Distinguish an outline, a score and a removable cutout.

Cricut documents Attach for associating draw/score work with cut layers and preserving placement. Assign the intended score operation explicitly and attach the fold line to the relevant cut shape; colour or dashed styling alone is not an operation assignment. Source: https://help.cricut.com/hc/en-us/articles/26751604105879-Canvas-screen-Design-Space-Guide

Worked example: a folding card with an A-shaped window.

Illustrative card: an A-shaped window is cut in the front panel and a vertical score defines the fold. The counter in the A is an island. If you want that paper island to remain, draw bridges connecting it to the surrounding paper; an SVG hole alone cannot support a loose piece. Keep the fold line separate from the cutting outline and verify its placement after Attach.

Inspect the narrowest bridge and the distance from the window to the fold at the final size. There is no universal bridge width that survives every paper, blade and removal method. An enlarged test does not qualify a small finished card.

Run a test that includes the fragile feature.

1. Choose the actual paper or cardstock and a tool supported by the selected machine. Follow that material’s and machine’s instructions for loading, settings and scoring.
2. Test a small area containing the narrow bridge, a curved cut and the intended fold. Record paper type/weight, tool, mat, scale and configuration.
3. Inspect the piece while cutting, removing it from the mat and folding it. A bridge that survives cutting but tears during removal has not passed the project’s practical requirement.
4. Adjust the design or documented setup based on the observed failure, then repeat that feature before cutting the whole card or box.

Paper stiffness, coatings and fibre behaviour vary. Avoid borrowing a pressure/speed recipe from another stock or assuming paper always holds finer detail than vinyl.

Vectorize does not establish structural bridges or assign Design Space score operations. Use the preparation checks above for source comparison and dimensions. Packaging assembly still requires the selected dieline and fold specification.

Physical cutting: isolate the failed step

First compare the preview with the failure.

Cricut’s upload guidance distinguishes imported cut lines from explicitly assigned draw or score operations. Check the intended operation and dimensions in Design Space before diagnosing the blade. Source: https://help.cricut.com/hc/en-us/articles/360009556313-How-to-upload-images-into-Design-Space

Run a small controlled comparison.

1. Use a shape with a previous successful result in this setup if you have one. A new simple circle is only a proposed control until it has cut successfully; do not call it known-good just because it looks simple.
2. Place the suspect feature and the control on a small piece of the intended stock, at the planned size. Record machine, Design Space version, tool, material, mat condition and configuration.
3. Run the test according to the selected machine and material instructions. Change one factor at a time between tests and keep a note or photograph of each physical result.
4. If only the suspect geometry fails consistently, inspect its narrow necks, corners and repeated contours. If the control also fails, investigate setup and material before simplifying the design.

Illustrative comparison: a previously successful square and a small script e are cut from the same stock. If the square releases cleanly but the e counter tears repeatedly, investigate that counter at the intended scale. This is a test design, not a reported material result.

Check blade and mat without a universal recipe.

A worn or obstructed blade is one possible cause of tearing, but a fixed number of operating hours does not establish its condition. Follow the exact tool’s inspection, cleaning and replacement instructions. Confirm that the material is supported and held as required, and that the selected tool is compatible with the machine and operation.

Do not apply a generic half-step blade adjustment, pressure or speed prescription across tools. If the control still fails after the documented checks, retain the test record for the machine or material supplier rather than repeatedly changing SVG geometry.

When the evidence points back to the file, use the file-fault checks above. Check dimensions against the usable project area: the SVG viewBox is not the usable mat area. After a justified edit, reopen the export and repeat the small intended-size comparison before the full job. SVG code optimization does not establish a correction to physical cutting faults.

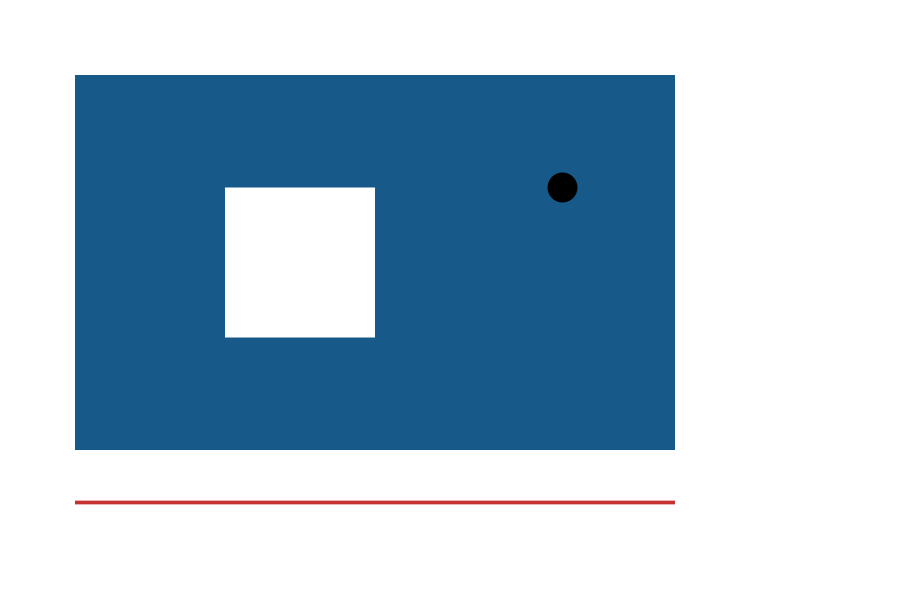

Owned geometry reference: Counter, dot and separate score line

Method: authored SVG coordinates use a120 × 80 mm page and matching viewBox. Inspect the linked rendered objects at your actual delivery size. This local geometry reference is not an installed-application walkthrough or physical qualification.

Native preparation readback before Design Space

Inkscape 1.2.2 reads the page as 120 × 80 mm and the badge as 80 × 50 mm. The counter stays inside the badge; the intentional dot and open score remain separate objects. This closes local preparation only. Actual Design Space import, layers and operation assignment remain unverified; color is not an assigned operation and no cut is demonstrated.
