Prepare and Verify an EPS Handoff
Ask whether the recipient needs editable paths or simply an EPS container. EPS can contain raster images; changing the extension does not reconstruct geometry. Vectorize does not export EPS directly.
Free Protected Preview
Protected preview for a path-based raster trace
No account is required to create or view the protected preview. The preview accepts one PNG, JPEG, or WebP file up to 4 MiB; other source formats must be exported or converted to one of those formats first. Editable SVG export requires paid or complimentary access. Review the exported SVG in the appropriate downstream software; non-SVG formats and machine instructions require separate conversion.
Open Protected preview for a path-based raster traceChoose paths or a photographic image
Start with the owner’s original master, especially when the only alternative is a WebP logo copied from a website. An existing SVG should go directly to an EPS-capable editor. Rasterizing it to PNG and tracing again discards the geometry you already have.
Source preparation for a requested EPS
- Source
- PNG, JPEG/JPG or WebP logo
- Preparation
- Upload only when the recipient needs paths; compare the protected preview with the source before authorized SVG export.
- Source
- BMP, HEIC or TIFF
- Preparation
- Export to PNG, JPEG or WebP in suitable local software first. Inspect the exported crop, orientation and fine detail.
- Source
- Photograph or tonal artwork
- Preparation
- Ask whether a photographic raster embed or another accepted container such as TIFF/PDF is appropriate. Tracing creates an interpretation, not recovered photographic detail.
| Source | Preparation |
|---|---|
| PNG, JPEG/JPG or WebP logo | Upload only when the recipient needs paths; compare the protected preview with the source before authorized SVG export. |
| BMP, HEIC or TIFF | Export to PNG, JPEG or WebP in suitable local software first. Inspect the exported crop, orientation and fine detail. |
| Photograph or tonal artwork | Ask whether a photographic raster embed or another accepted container such as TIFF/PDF is appropriate. Tracing creates an interpretation, not recovered photographic detail. |
JPEG and JPG are the same encoding. Re-saving as PNG preserves existing damage; it does not remove compression artifacts. Enlargement and sharpening are optional comparisons, not a proven prerequisite for better EPS paths. TIFF’s extension alone does not establish lossless content.
Keep the three stages separate
- For a raster path job, create and inspect the protected preview, then obtain authorized SVG. Keep that SVG as the editable intermediate.
- Open the SVG in an EPS-capable editor and save a separate EPS copy using the receiver’s specified options. Inkscape’s guide labelled 1.3 lists EPS under its other-format workflow and notes that some formats depend on installed programs: https://inkscape-manuals.readthedocs.io/en/latest/export-other-formats.html. Confirm availability in your installation.
- Reopen and inspect the downstream EPS before delivery. Confirm its page bounds, colors, text handling, path geometry, and compatibility with the recipient’s software. The protected preview is a visual checkpoint, not proof that the later EPS is production-ready.
A native Illustrator Save As EPS operation is another possible route when available in your licensed installation; verify its current options locally. There is no single recommended EPS version or transparency preset for every receiver.
Diagnose the handoff rather than the extension
Illustrative reopened-file checks
- Observation
- A selected logo is one image object
- Decision
- If editable paths were requested, raster embedding has not met that requirement.
- Observation
- A translucent shadow changes against a colored proof background
- Decision
- Review transparency treatment with the recipient; compare the saved copy against the master.
- Observation
- Small lettering becomes a dense collection of contours
- Decision
- Inspect legibility at intended size; recreate text separately if needed and permitted.
- Observation
- The file opens but its page or color differs
- Decision
- Resolve bounds and color interpretation before delivery; opening is not acceptance.
| Observation | Decision |
|---|---|
| A selected logo is one image object | If editable paths were requested, raster embedding has not met that requirement. |
| A translucent shadow changes against a colored proof background | Review transparency treatment with the recipient; compare the saved copy against the master. |
| Small lettering becomes a dense collection of contours | Inspect legibility at intended size; recreate text separately if needed and permitted. |
| The file opens but its page or color differs | Resolve bounds and color interpretation before delivery; opening is not acceptance. |
EPS artwork is not embroidery stitch data or machine instructions. A recipient’s digitizing or production application still owns those steps. Keep a reference rendering with the EPS and record the editor/version used for the reopen check.
Obtained native application evidence

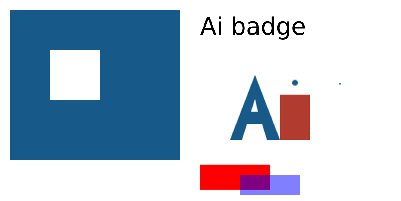

Obtained local document test: Inkscape1.2.2 exported an owned mixed SVG as PostScript Level3 EPS using page bounds and text-to-path. Ghostscript10.02.1 reopened it at96dpi. The source contains a vector badge/counter, live text, embedded raster badge and overlapping translucent rectangles.
The source raster is400 × 200; integer EPS bounding-box rounding produces401 × 201 on reopen. Compare at the same origin with one white pixel padded on the source’s right and bottom, not rescaled. The comparison contains1,316 differing pixels, so these are not identical renders. EPS structure includes vector path commands and raster-image operations. Reopened appearance does not establish editable Illustrator objects or a supplier’s color-profile acceptance.
Observed import failure: this installed Inkscape version omitted the embedded raster when the input used only SVG2 href. Adding the equivalent xlink:href reference restored it before export. Preserve the original and inspect embedded images in the application; format labels alone do not prove that every object survived.
